Follow the airflow.
Inspect velocity and pressure to understand air distribution, recirculation and the interaction between supply and extract locations.
CFD FOR HVAC & BUILDING VENTILATION
See the air.
Shape the
outcome.
Understand how air moves through your building. Explore ventilation strategies, compare HVAC designs and make better decisions with Climoptix CFD software.
Built around buildings. Designed for better airflow.
CLIMOPTIX / FLOW STUDIES
MAKE THE INVISIBLE VISIBLE

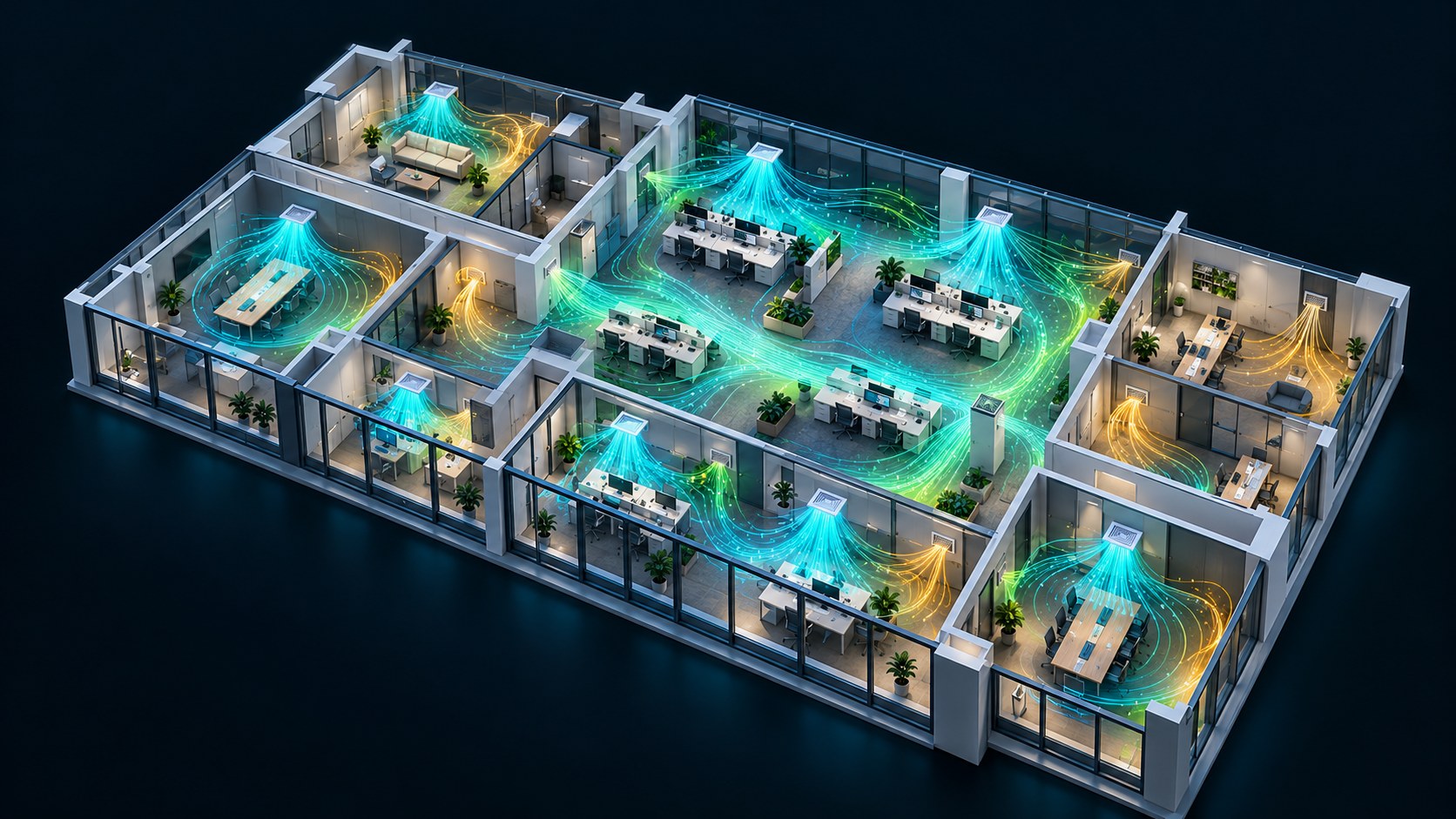

Illustrative CFD concept · AI-generated, not a simulation result
A CLEARER PICTURE OF PERFORMANCE
A room is more than
a flow-rate calculation.
Supply air has to reach the right places. Furniture, room geometry and vent positions all influence its path. Building CFD makes those relationships visible.
Challenge the design.
Keep a baseline, create alternative simulations and examine the effect of changing vent positions, flow rates and room arrangements.
Design with intent.
Use simulation evidence to guide ventilation optimisation before committing to a layout or making changes on site.
FROM GEOMETRY TO UNDERSTANDING
One building.
More informed decisions.
A connected workflow for preparing your building, running supported airflow studies and interrogating the results.
WORKFLOW EXPLORERILLUSTRATIVE
01 / BUILDING MODELStart with the space you actually have.
Use measured room geometry, openings and simplified obstacles to prepare a connected air volume. Organise independent simulations around the shared building.
Make the assumptions explicit.
Position supply and extract devices, define their flow rates and review surface conditions and mesh intent. A connected OpenFOAM worker checks support before meshing or solving.
Look beyond a single colour plot.
Explore real velocity and pressure results with slices and point probes. Compare scenarios against your baseline, alongside the mesh, residuals and modelling assumptions.
Current execution focuses on supported steady, isothermal airflow studies with a connected worker. Thermal, comfort and automatic optimisation capabilities have separate development and validation requirements.
DESIGN ITERATION / CONCEPTUAL LAYOUTSHVAC DESIGN OPTIMISATION
Don’t stop at
the first design.
The real opportunity is in what you change next.
Compare ventilation layouts on the same building model. Explore different vent positions and flow rates, investigate where air circulates, and use the findings to refine your design.
- Keep baseline and alternative studies organised
- Review airflow where the room is occupied
- Make changes with a traceable design rationale
Designer-led comparison is available in the preview. Automatic adjoint optimisation is in development.
FOCUSED ON THE BUILT ENVIRONMENT
Airflow questions.
Real spaces.
For building-services engineers, HVAC designers and project teams exploring how a space will ventilate.
01SUPPLY / EXTRACT02ROOM-SCALE CFD03COMPARE / REFINE
Mechanical ventilation
Review supply and extract arrangements, airflow distribution and recirculation.
Occupied spaces
Examine airflow around furniture and room layouts in offices, classrooms and shared spaces.
Design & refurbishment
Explore alternatives before an installation or a change to the existing ventilation layout.
A FEW USEFUL ANSWERS
Clarity, before
you begin.
Want to discuss a particular building or simulation requirement? Talk to us
What is Climoptix?
Climoptix is a building-focused CFD software workspace for preparing HVAC and ventilation studies, inspecting supported airflow results and comparing design options. It is currently in private preview.
How does CFD help with HVAC design?
Computational fluid dynamics resolves airflow within a room, helping you examine distribution and recirculation around the actual layout. It complements system sizing calculations with spatial information about where air travels.
Can I optimise my ventilation design?
You can prepare alternative scenarios and compare supported simulation results to guide changes to vent locations and flow rates. Automatic adjoint optimisation is in development and is not currently available to run.
Does Climoptix calculate thermal comfort or indoor air quality?
Current solver execution focuses on steady, isothermal airflow. Thermal, buoyancy, CO₂, age-of-air and thermal comfort outputs are not currently offered as validated solved capabilities. Contact us to discuss the scope needed for your project.
How can I access the software?
Climoptix is in private preview. Enquire about a demonstration and access so we can discuss your building, requirements and the current supported workflow.
Private preview · Project enquiries
Let’s find your
better flow.
Designing a ventilation system or reviewing an existing space? Tell us about your building and the airflow question you need to answer.
START A CONVERSATIONBring your building.
Bring your building.
Bring your questions.
Ask about a demonstration, current capabilities and access to the Climoptix preview.
